Card Leaf Gauges – 7 Leaf Set for Carding Machines

Stainless steel card leaf gauges for setting carding machines. Used to check and set the gaps between cylinder and flats, licker-in, and cylinder and doffer - the settings that hold nep removal, waste and sliver quality steady across a carding room.

Key features

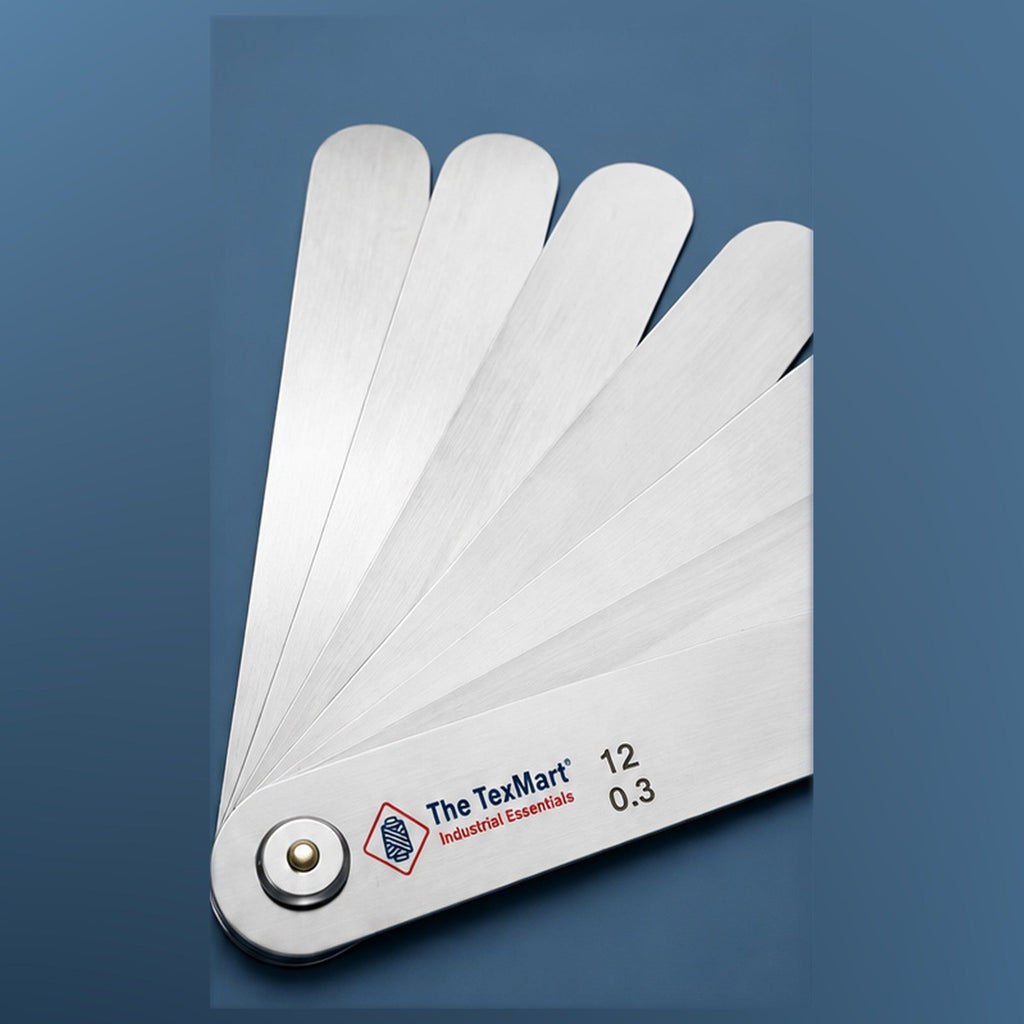

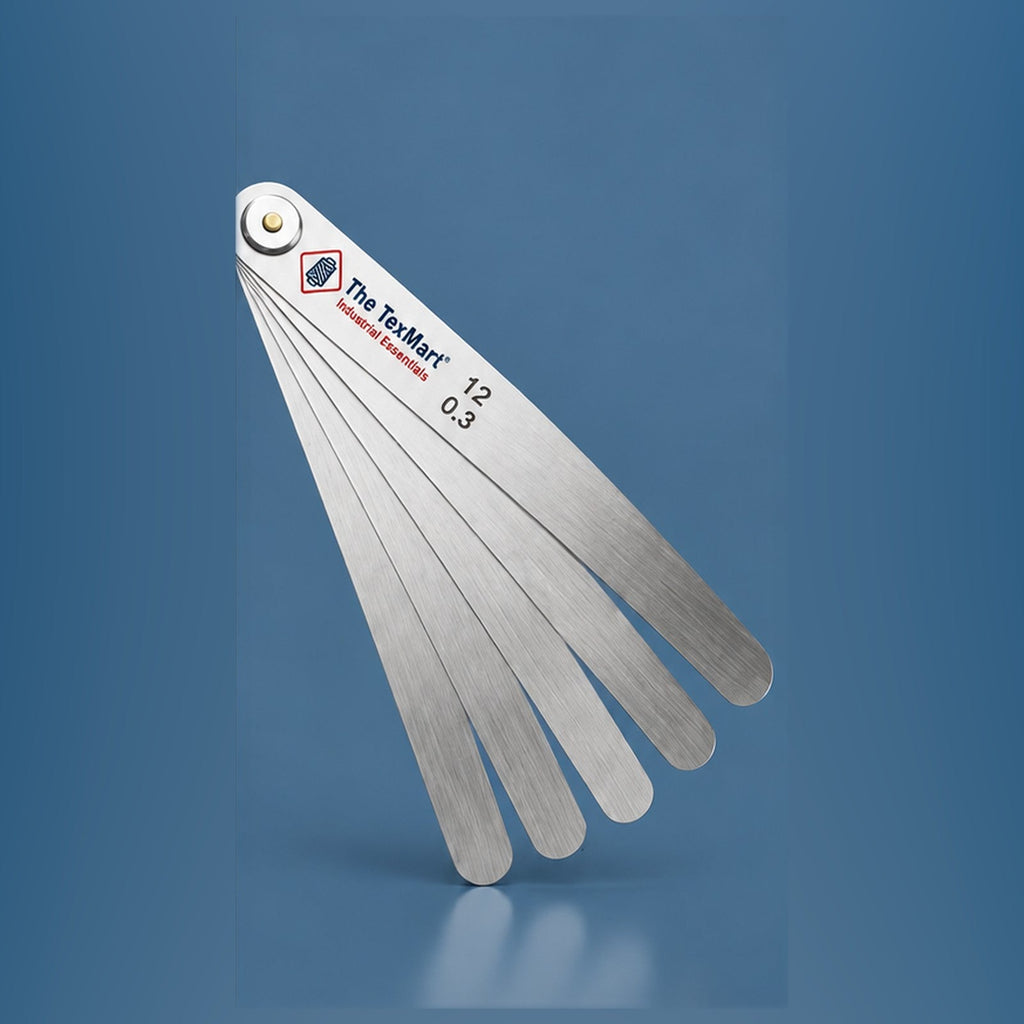

• Seven leaves in every set, riveted on a pivot with a protective end cap

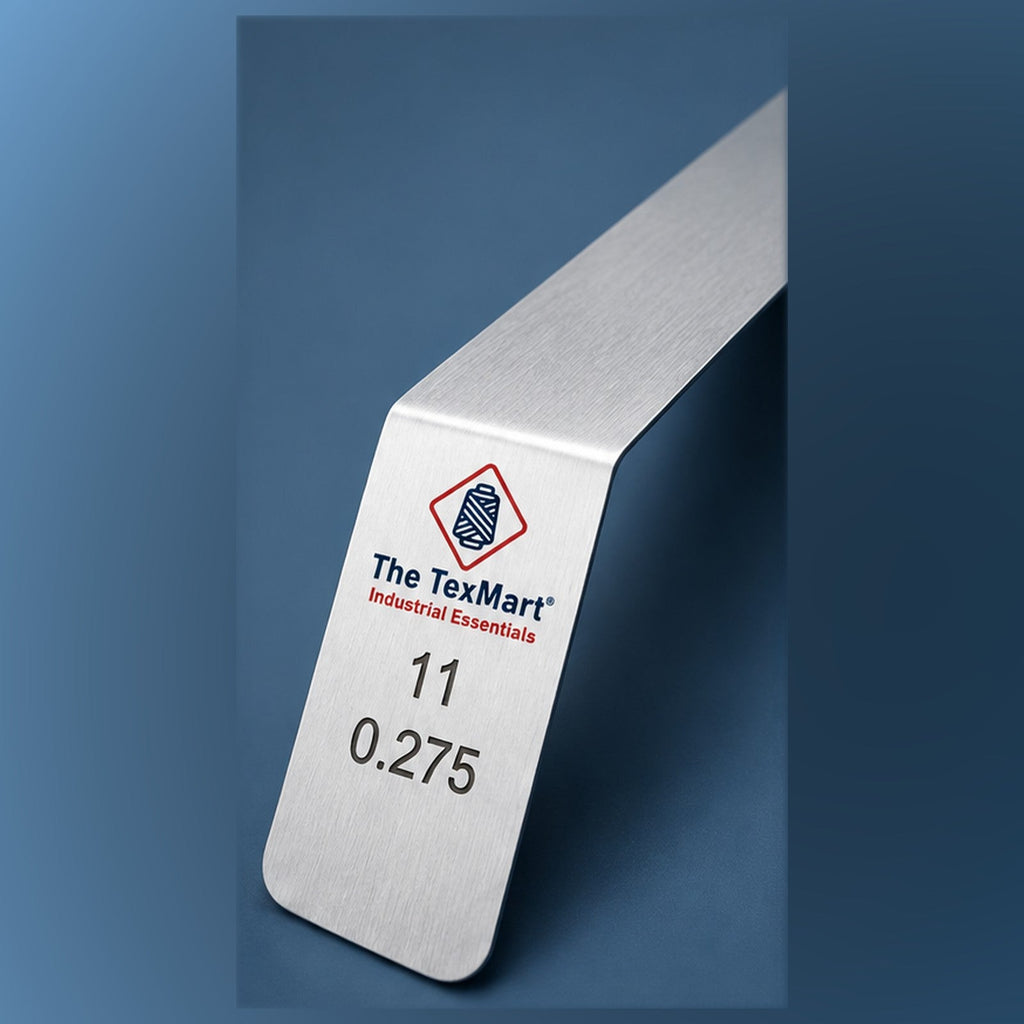

• Each leaf etched with its gauge number and thickness in mm for instant identification
• Stainless steel throughout - corrosion resistant in humid mill conditions
• Hardened and ground to consistent thickness tolerance for repeatable settings
• Leaves swing out individually and lock flat against the setting point
• Two working lengths and two widths to suit different card makes and access points

Sizes available

• 300 x 30 mm - 7 leaf set
• 300 x 45 mm - 7 leaf set
• 400 x 30 mm - 7 leaf set
• 400 x 45 mm - 7 leaf set

Typical applications

Setting cylinder to flat, licker-in to cylinder, cylinder to doffer, feed plate and mote knife gaps on carding machines; routine gauge checks during card maintenance and after wire mounting or grinding.

Supplied by Texmart (Patco Exports Pvt. Ltd.), Mumbai. Prices are inclusive of GST; delivery is calculated at checkout. Additional sizes and custom leaf combinations available on request.
